The Vessel — 35 m Red Sea Liveaboard for Sale
35 m Red Sea Liveaboard for Sale
The Vessel
- Length overall
- m 35 m
- Beam
- m 7.64 m
- Guests
- 24
- En-suite cabins
- 12
- Cruising speed
- kn 12 kn
- Built 1999 · wooden hull
- Major refit
- 2025

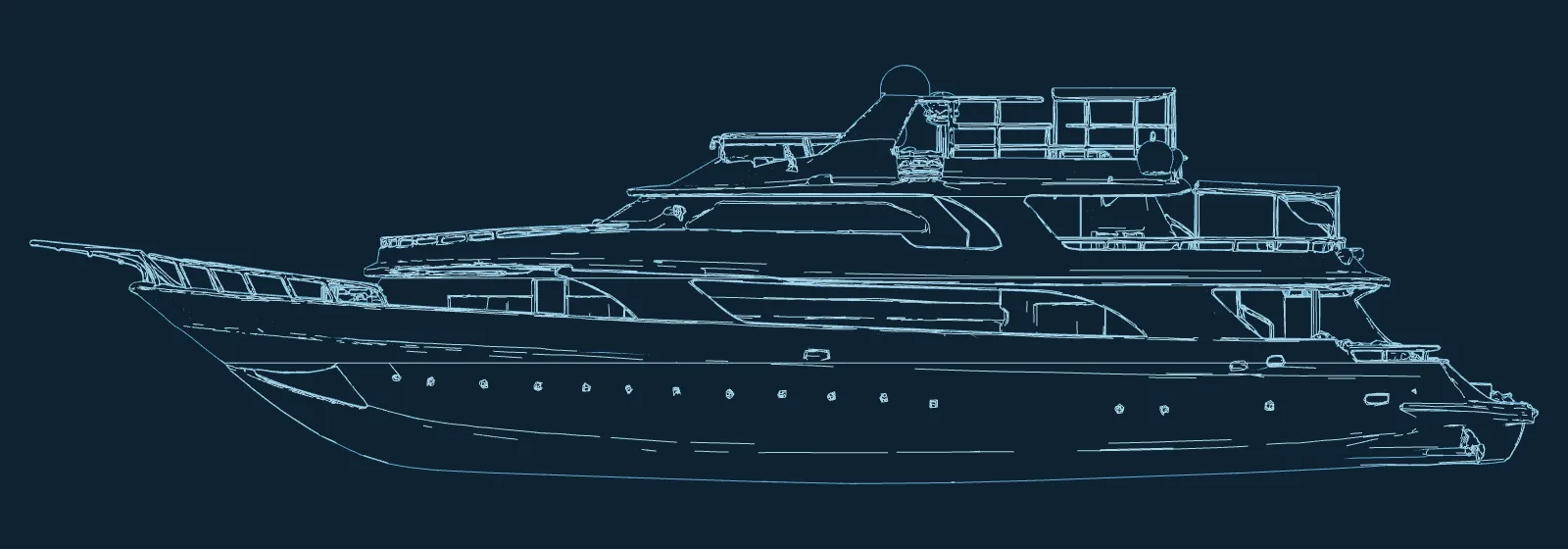

The 3D drawing is an illustration and is not 100% accurate to the real vessel. Proportions and details may differ. Please rely on the photographs and the specifications.Illustration only. Not 100% accurate to the real vessel. See photos and specifications.
Deck by deck
Four decks, one vessel.
Sun, upper, main and lower deck.
Deck plan
Sun deck
Upper helm station.
Deck plan
Upper deck
Covered outdoor lounge aft, bar, suites 11–12, wheelhouse, solarium forward.
-
Outdoor lounge
The covered outdoor lounge aft, with the bar.
-
Suites 11–12
Two twin suites, each en-suite and air-conditioned, with a fridge.
-
Solarium
The solarium forward of the wheelhouse, about 20 m².
Deck plan
Main deck
Dive deck aft with two tender positions and tank racks, saloon and bar, restaurant, galley, double cabins 9–10 forward.
-

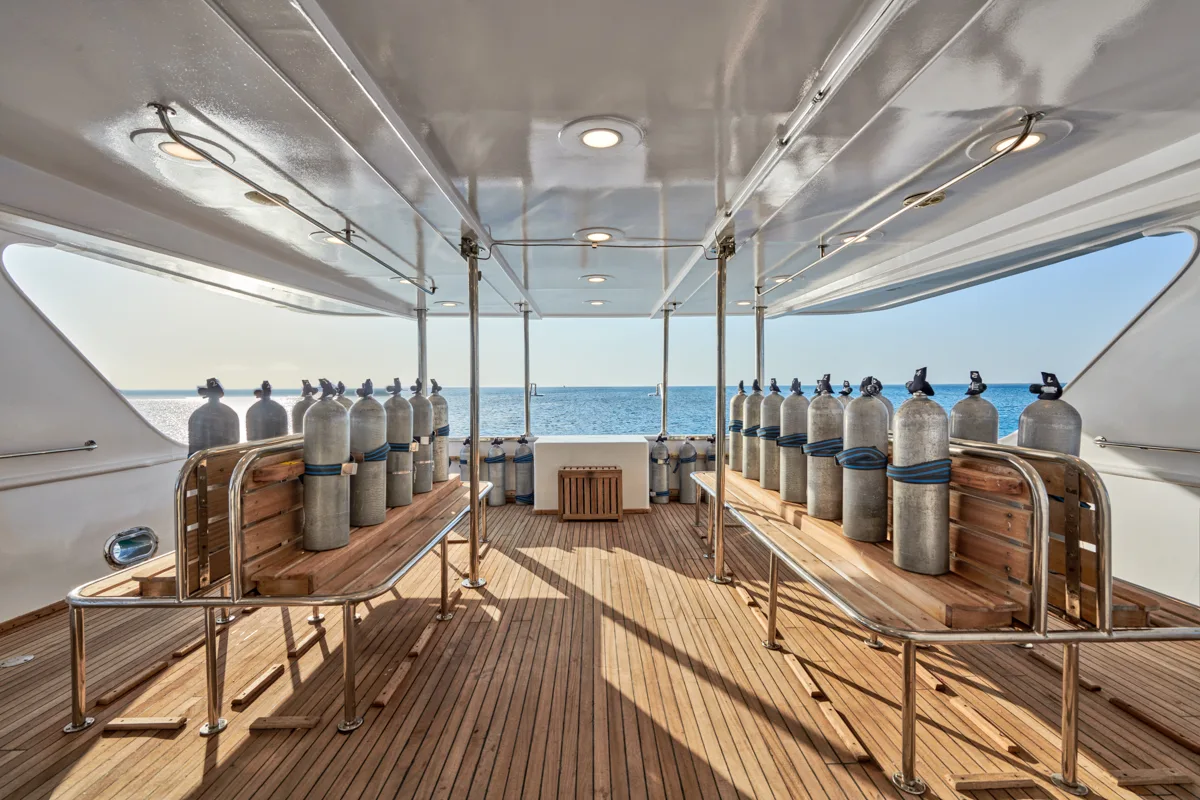

Dive deck
Two tender positions and tank racks.
- Dive equipment in the sale
- 3 × Bauer air compressors; Atlas Copco and NRC membrane nitrox compressor; tanks; 24 dive stations; 2 × 6 m tenders with 70 hp Suzuki outboards; 1 × 5.2 m tender with a 40 hp Yamaha outboard
-
Saloon and bar
Air-conditioned, with 55-inch screens and a coffee corner.
-
Restaurant
The air-conditioned restaurant, forward of the saloon.
-
Galley
The galley, forward of the dining area and aft of double cabins 9–10.
-
Double cabins 9–10
Two double cabins forward, each en-suite and air-conditioned, with a fridge.
Deck plan
Lower deck
Engine room aft, twin cabins 1–8 midships, crew quarters forward.
-
Engine room
Main engines and generators.
- Main engines
- 2 × Caterpillar 3412, 12-cylinder marine diesel
- Output per engine
- 764 hp
- Generators
- CAT 3304 and Perkins 1004
-
Twin cabins 1–8
Eight twin cabins midships, each en-suite and air-conditioned, with a fridge.
-
En-suite bathrooms
All 12 cabins have their own bathroom.
Deck plans are traced from the owner's plan. The 3D model behind them is approximate.

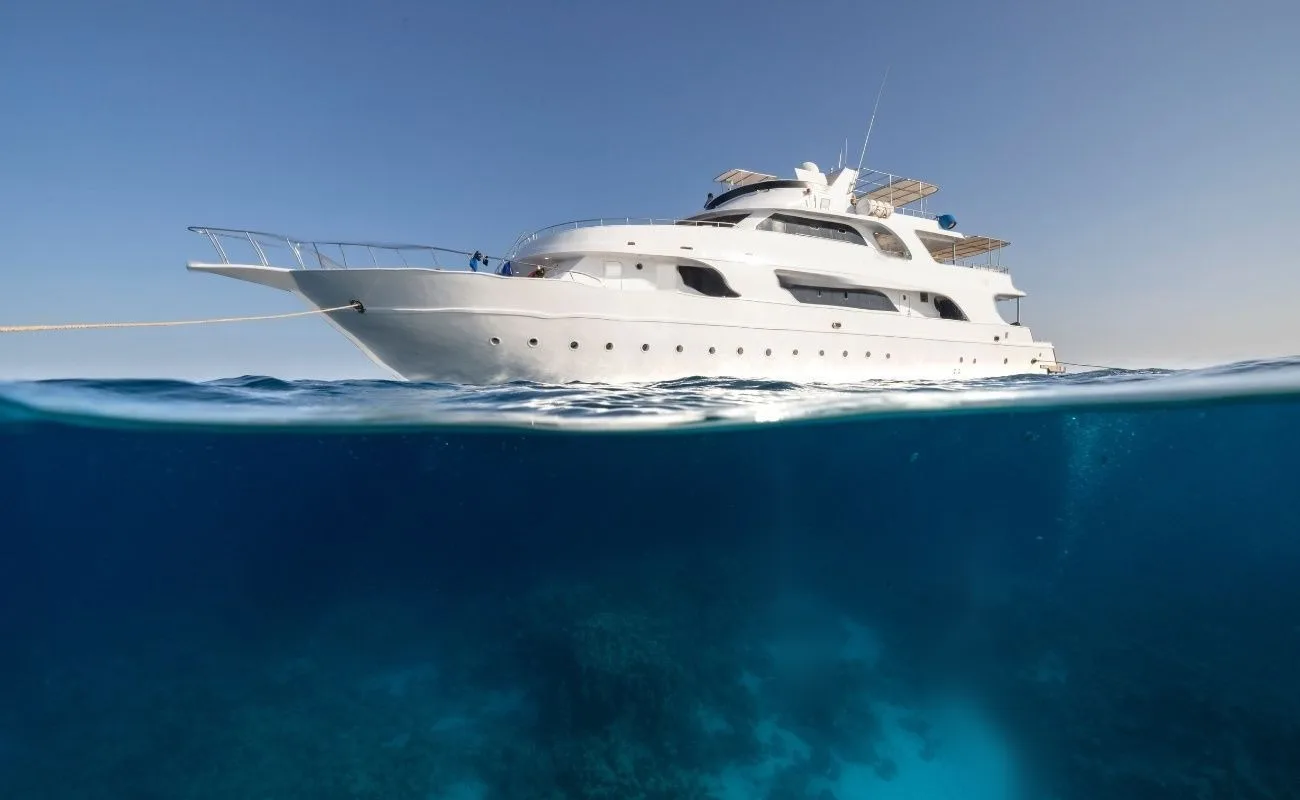

Life on board
24 guests in 12 en-suite, air-conditioned cabins.
Vessel equipment
Built for diving
Included in the sale: 3 × Bauer air compressors; Atlas Copco and NRC membrane nitrox compressor; tanks; 24 dive stations; 2 × 6 m tenders with 70 hp Suzuki outboards; 1 × 5.2 m tender with a 40 hp Yamaha outboard.
- Dive deck aft with two tender positions and tank racks
- 24 dive stations with camera and light charging
- 3 × Bauer air compressors
- Atlas Copco and NRC 500 membrane nitrox compressor
- 2 × 6 m RIB tenders, 70 hp Suzuki four-stroke, forward control
- 1 × 5.2 m RIB tender, 40 hp Yamaha two-stroke
Refit · 2025
The 2025 refit
Built in 1999 and given a major refit in 2025, with major work carried out on all six systems.
-
Major work was carried out on this system in the 2025 refit.
On board today
- Main engines: 2 × Caterpillar 3412, 12-cylinder marine diesel
- Output per engine: 764 hp
- Generators: CAT 3304 and Perkins 1004
- Watermakers: 400 L/h and 200 L/h
- Engine room aft, on the lower deck
-
Major work was carried out on this system in the 2025 refit.
On board today
- Wooden hull, built in 1999
- Length overall 35 m, beam 7.64 m
-
Major work was carried out on this system in the 2025 refit.
-
Major work was carried out on this system in the 2025 refit.
On board today
- All 12 guest cabins are air-conditioned
- The saloon and dining areas are air-conditioned
- The wheelhouse and the crew quarters are also air-conditioned
-
Major work was carried out on this system in the 2025 refit.
On board today
- 12 guest cabins for 24 guests, each en-suite and with a fridge
- Lower deck: 8 twin cabins Main deck: 2 double cabins, forward Upper deck: 2 twin suites
- Saloon and dining, with 55-inch screens and a coffee corner
- Crew quarters: 12 berths
-
Major work was carried out on this system in the 2025 refit.
On board today
- Alarms: bilge alarm, traceable fire alarm system
- Fire extinguishers, flares, searchlight, oxygen, first aid
- Life rafts for 25 + 16 persons
Specification sheet
Specifications
Dimensions
- Length overall
- 35 m
- Beam
- 7.64 m
- Hull
- Wood
- Built
- 1999
- Major refit
- 2025
Engineering
- Main engines
- 2 × Caterpillar 3412, 12-cylinder marine diesel
- Output per engine
- 764 hp
- Generators
- CAT 3304 and Perkins 1004
- Cruising speed
- 12 kn
- Last major service
- August 2026
Fuel and water
- Fuel
- 12 t
- Fresh water
- 12 t
- Watermakers
- 400 L/h and 200 L/h
Accommodation
- Guests
- 24
- Cabins
- 12, en-suite and air-conditioned, each with a fridge
- Lower deck
- 8 twin cabins
- Main deck
- 2 double cabins, forward
- Upper deck
- 2 twin suites
- Crew
- 12 berths
- Saloon and dining
- Air-conditioned, 55-inch screens, coffee corner
- Sundecks
- Forward (solarium) about 20 m²; aft about 40 m² shaded and 70 m² open; bar
Navigation and safety
- Navigation
- Radar, GPS, depth sounder
- Communication
- VHF/DSC, SSB, satellite phone
- Alarms
- Bilge alarm, traceable fire alarm system
- Safety
- Fire extinguishers, flares, searchlight, oxygen, first aid
- Life-raft capacity
- 25 + 16 persons
Dive equipment
- Included in the sale
- 3 × Bauer air compressors; Atlas Copco and NRC membrane nitrox compressor; tanks; 24 dive stations; 2 × 6 m tenders with 70 hp Suzuki outboards; 1 × 5.2 m tender with a 40 hp Yamaha outboard
- Dive deck
- Aft, with two tender positions and tank racks
- Dive stations
- 24, with camera and light charging
- Compressors
- 3 × Bauer air compressors
- Nitrox
- Atlas Copco and NRC 500 membrane nitrox compressor
- Tenders
- 2 × 6 m RIB tenders, 70 hp Suzuki four-stroke, forward control; 1 × 5.2 m RIB tender, 40 hp Yamaha two-stroke
Spec sheet
Two pages, A4, print-friendly.
Download spec sheet (PDF)Documents available
Shared on request.
- Legal documents On request
- Dry-dock records On request
- Maintenance log On request
- Registration papers On request
